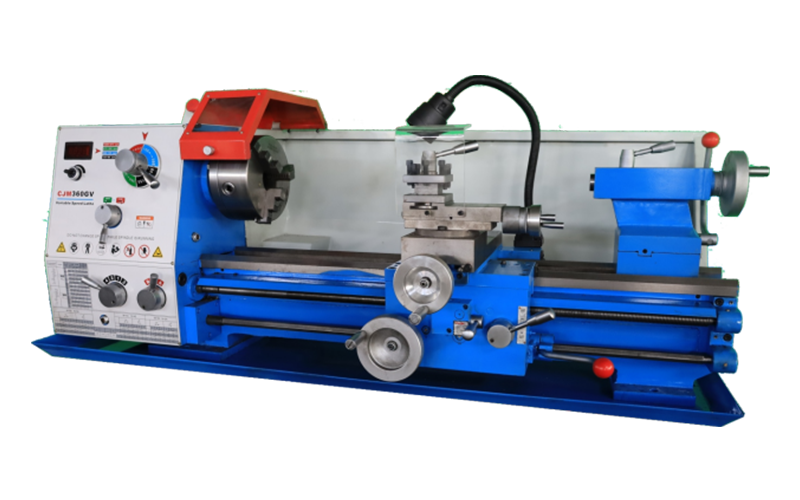

Product features
?The headstock is driven by ground gears , and the cyclic shifts changing by single handle to make the main spindle obtaining four ranges of speeds. In the selected ,range , the speed display
will show the required cutting speed by adjusting the speed knob.
The speed range is with many choics ,especially suitable for low-speed tooling.Large aperture, Spindle through hole φ52
?Feeding box with 12 steps of variable speeds ,covering common threading pitches .
?Longitudinal & cross auto feeding adopts inter-lock structure with good safety.
?High frequency hardened Two V-type widened guideway with rigidity.
?Inclined wedge toolpost carriage; Camlocked tailstock;Industrial lathe operation rod
Technical parameters | Model | |
CJM360GV/600 | CJM360GV/750 | |
Max. swing over bed | 360mm | |
Max. work-piece length | 600mm | 750mm |
Max. swing over carriage | 230mm | |
Main spindle diameter | 52mm | |
Main spindle taper | MT.6# | |
Max. cross travel of carriage | 205mm | |
Max. travel longitudinal of toolpost | 100mm | |
Metric threads range/ No | 0.25 ~7.0mm/26 | |
Imperial threads range/ No | 4 ~ 56T. P. I/ 37 | |
Module threads range/ No | 0.2 ~7M. P/27 | |
Diametrical threading range/ No | 4 ~216D. P/40 | |
Toolpost longitudinal feeding per spindle rotation | 0.049 ~ 1. 382mm/ r | |
Toolpost cross feeding per spindle rotation | 0.022 ~0.61mm/ r | |
Max. travel of tailstock sleeve | 90mm | |
Tailstock sleeve taper | MT.3# | |
Spindle speed steps | Four shifts + Speed adjustment | |
Main Spindle speed scope | 60 ~ 1600 rpm | |
Main motor power | 1. 5 kw | |
Net weights/Gross weights | 370/420kg | 390/440kg |
Overall dimensions( L*W* H) | 140×70×64cm | 152×70×64cm |
Packing dimensions (L*W* H) | 150×76×77cm | 163×76×77cm |
Stamdard accessories | Optional accessories | ||
3 -jaw chuck | Φ200 | Chip tray | Machine Base |
Belt | A type 813 | Steady rest | Follow rest |
Dead centers | MT.3#,6# | 4 -jaw chuck Φ200 | Flange plateΦ200 |
Chuck spanner | 1 piece | Face Plate Φ250 | Thread dial indicator |
Allen wrench | 4#,5#,6# | Special optional change gears(6) | Live center |
Stud dead | 12 - 14; 17 - 19 | Coolant | Work light |
Changing gears | 35T、36T、44T | Digital readout | Optional motor 2.2KW |
MN gears | 2 piece |
Product features
?The headstock is driven by ground gears , and the cyclic shifts changing by single handle to make the main spindle obtaining
four ranges of speeds. In the selected ,range , the speed display will show the required cutting speed by adjusting the speed knob.
The speed range is with many choics ,especially suitable for low-speed tooling.Large aperture, Spindle through hole φ52
?Feeding box with 12 steps of variable speeds ,covering common threading pitches .
?Longitudinal & cross auto feeding adopts inter-lock structure with good safety.
?High frequency hardened Two V-type widened guideway with rigidity.
?Inclined wedge toolpost carriage; Camlocked tailstock;Industrial lathe operation rod
Kind Tips:The products will be improved and updated continously. The changes shall not be noticed additionally. Due to the di?erent con?guration requirements , the machines pictures and physical objects may be di?erent , and the physical machines prevail.
